PVFG Series 1500Vdc 10x65mm

Class of Operation: gPV

Rating:

Amps: 15-25A

Volts: 1500Vdc

Interrupting Rating: 30kA@1500Vdc

Standards/Approvals for Reference:

2 Approvals UL 248-19 Listed（2579）；

2 Environmental RoHS Compliant REACH

2 Body: Fiberglass

2 Terminations: Tin Plated Copper Caps

Description: CHNBEL series of 10x65 mm, 1500Vdc PV fuses are for protecting and isolating photovoltaic strings, are applied in combiner boxes, inverters.

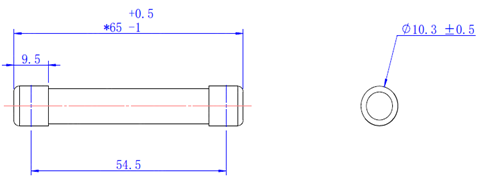

Dimensions(mm)

Catalogue Numbers
